ON OFF Control DC Motion Detection Sensor 22206mm Bare Board

Name: ON OFF Control DC Motion Detection Sensor 22206mm Bare Board
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : HD046-01S

Certification : CE RoHS

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200,000pcs per month

Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order

Packaging Details : bubble pack, paper flat, drying agent,outer carton.

Compact size : 20*22*6mm

Connector : Three position stitch output

Output : 5V PWM

Mounting height : ≤4m (ceiling mounted)

Detection angle : 360°（ceiling mounted），150°（Wall Mounted）

Control mode : ON/OFF

Operating current : <30mA

Operating voltage : 9-15V DC (supply current >50mA)

Contact Now

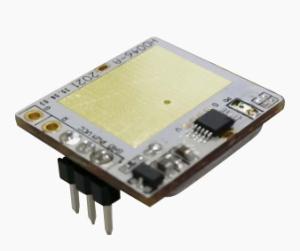

ON OFF Control DC Motion Detection Sensor 22*20*6mm Bare Board

ON/OFF Control DC Input Sensor Bare Board 22*20*6 MM Size Detection 3-6m

Wiring diagram of DC sensor:

Control mode	ON/OFF
Output	5V PWM
Stand-by power	≤0.5Wv
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Operating voltage	9-15V DC (supply current >50mA)
Operating current	<30mA

Dimmensions of DC Sensor:

Size	LWH:22206MM
Operating temperature	-20°C~+60°C
Warranty	5 years
Function setting	(Power on for 10s) Switch on and off continuously for 3 times within 3s to enter the test mode
IP grade	IP 20

Detection area of DC sensor:

Mounting height	≤4m (ceiling mounted)
Detection range	Radius,3-6m (ceiling mounted)
Detection angle	360°(ceiling mounted),150°(Wall Mounted)
Motion detection	0.5~1.5m/s

Mechanical structure of DC sensor:

Connector	Three position stitch output
Detection area	100%
Hold time	1min
Daylight threshold	50Lux

Application:

1. Automatically ON/OFF function:

a:The ambient light sensitivity threshold is a theoretical value,which is closely related to the lighting ficture and installation mode.

b:.The module installation should be far away from the interference of metal media,otherwise it is easy to cause salf-excitation phenomenon.

	With sufficient daylight,even when motion detected,light remains OFF.
	With insufficient daylight,when motion detected, light ON.
	After the last detection and the present hold time elapsed, light OFF.

Features of ON/OFF Sensor:

1. 20*22*6mm super compact size

2. Module & PCB Board integrated design

3. 3pins to be connected with LED lighting board

4. Chip daylight PD to shorten the whole thickness

5. LED BULB and downlight application

6. Low price with the similar function with the housing sensor

7. ON/OFF sensor applied in corridor, bathroom

8. 3-4m detection radius to be suitable for office, room and corridor

9. 360°detection angle for ceiling mounted, no blind area
